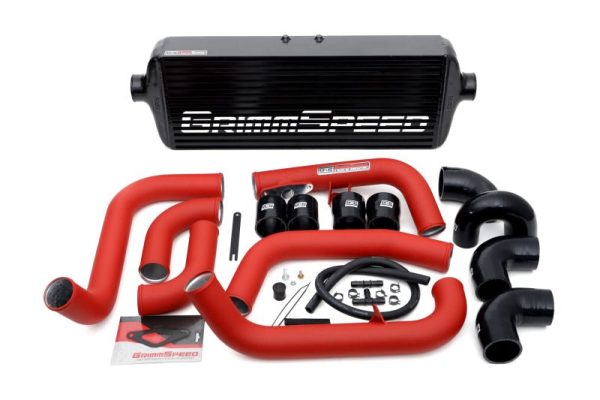

GrimmSpeed Front Mount Intercooler Kit Black Core Red Pipe 2008-2014 STI

INTERCOOLER CORE SPECS:

Black core finish option

27 x 11 x 4 Cross Flow Core

Durable bar and plate construction that has a perfect balance of pressure drop and heat rejection

Cast aluminum end tanks – Designed for equal flow distribution and minimum pressure drop

Steel bolt-on mounting brackets – Robust mounting solution to minimize movement and to maximize adjustability

No permanent vehicle modification –  Only two tiny ribs need to be removed from the OEM undertray and a few simple cuts to the splash guard

Compatible with the factory or GrimmSpeed Intake with the removal of the factory snorkel

Pressure tested, cleaned, sealed, and guaranteed to work prior to delivery

No tune required – No change in maximum boost or spool time

Welded and inspected by hand in Minneapolis, MN for consistency and optimal quality control

Includes pre-applied GrimmSpeed sticker





INTERCOOLER PIPING SPECS:



Red powder-coated finish option

Thick .090 wall 2.5 diameter 6061 aluminum piping construction

Bead rolled and CNC mandrel-bent on a large radius for max flow

Lightweight and heat dispersant

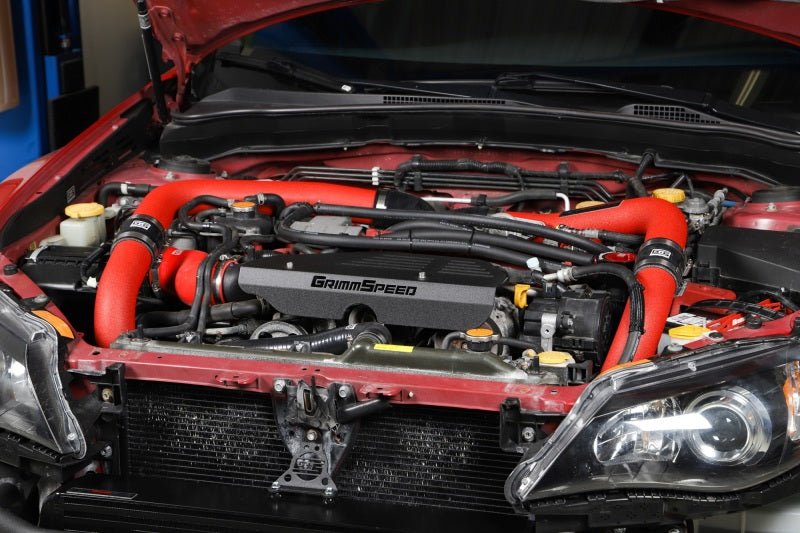

Precision pipe routing – Retains factory components and avoids unnecessary trimming

Retains the factory fog light mounting

5-ply silicone couplers – Custom-molded and reinforced to withstand demanding environments

Breeze Hi-Torque Liner Clamps – Stainless steel for lasting durability and grip with an integrated liner to prevent damage to the silicone

Durable powder-coated finish keeps pipes protected against corrosion while keeping a great look

OEM bypass valve location – Eases installation and allows for use of most aftermarket BPVs



NOTE:



The bumper bar is NOT included in this kit and is sold separately
